HMI without any “action” is decoration.
Abatek is the world leading provider for contact solutions and for switch components in the control circuit.
Any contact needs 2 surfaces. Abatek with its performant portfolio ensures that your application meets highest quality standards.
Best price-performance ratio is guaranteed.

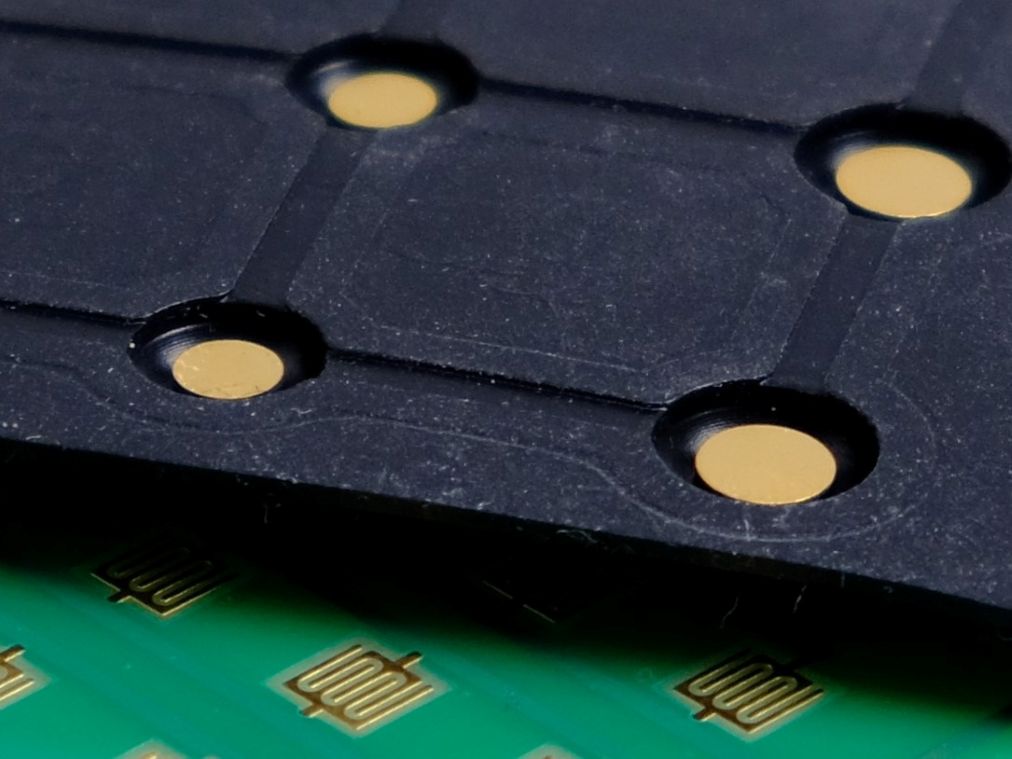

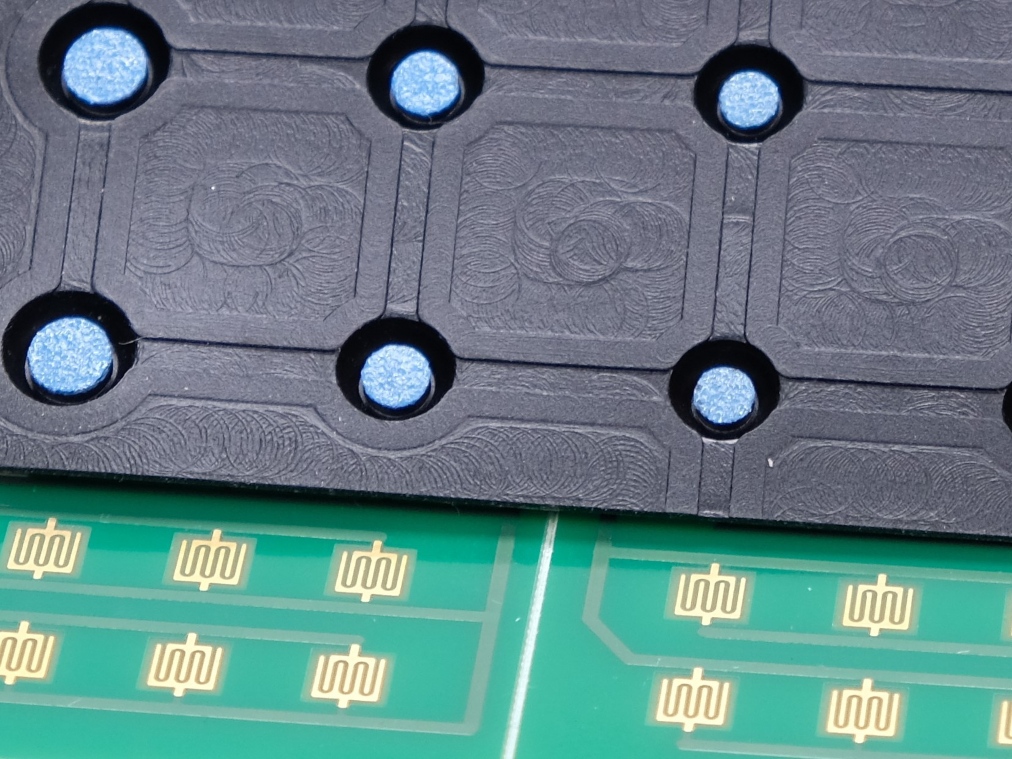

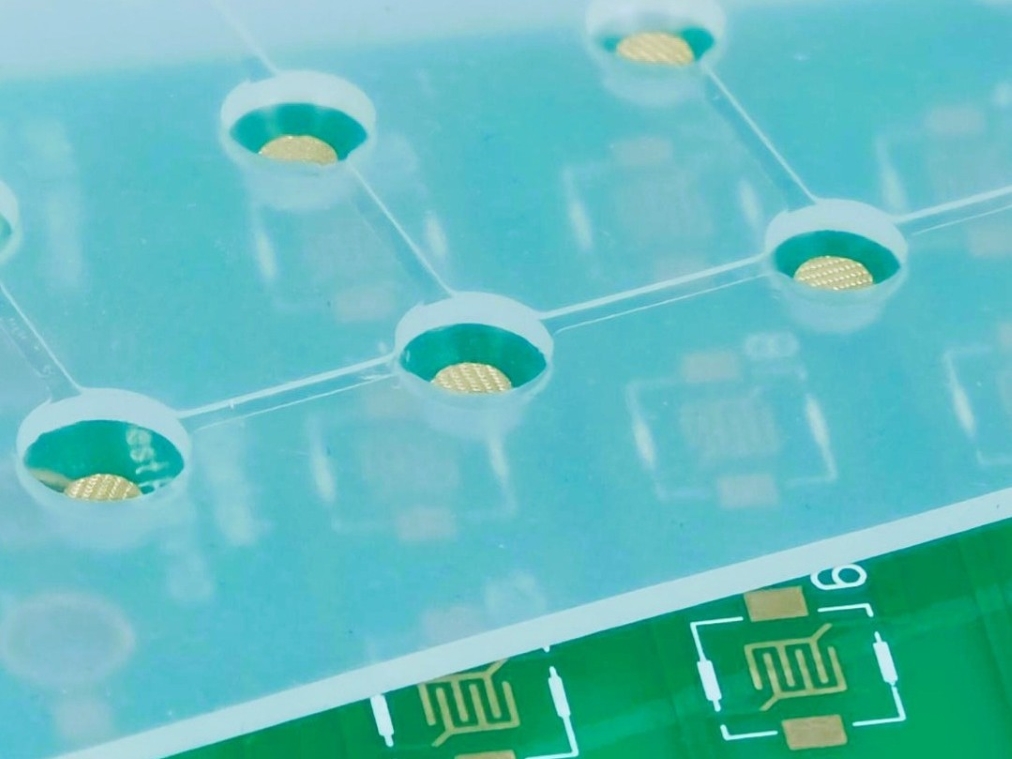

SC-L Pill
Best price-performance ratio for low resistance contact.
SC-L is the ideal contact technology for silicone keypads in resistance coded or directly switched applications as well as for safety relevant applications.
SC-L is technically way superior to any Gold- or Carbon contact and thus THE benchmark contact within the automotive industry.
Unique advantages are:
- Very low contact resistance
- Low contact force
- Reliable switching with a distinctive voltage drop when pill hits PCB
- Endures dust and dirt exposure
- Robust also in humid environments
- Reliable also for rotational actuation - e.g. window lifter
- Complete contact silence / no contact noise
|
|
Description
- Blue color = Non-conductive silicone
- Silver color = Conductive nickel mesh
- Co-molded with keypad
- Cost-efficient
- Still performs in dusty environment
- Flat actuation
- ENIG PCB
- Proprietary Abatek technology
|
Key Tech Data
- Resistance < 1.0 Ohm – pill with Ø >=3.0 mm
- Resistance < 1.5 Ohm – pill with Ø 2.5 mm
- Contact force < 0.5 N
- 14 V / 0.1 – 1000 mA
|
Contact

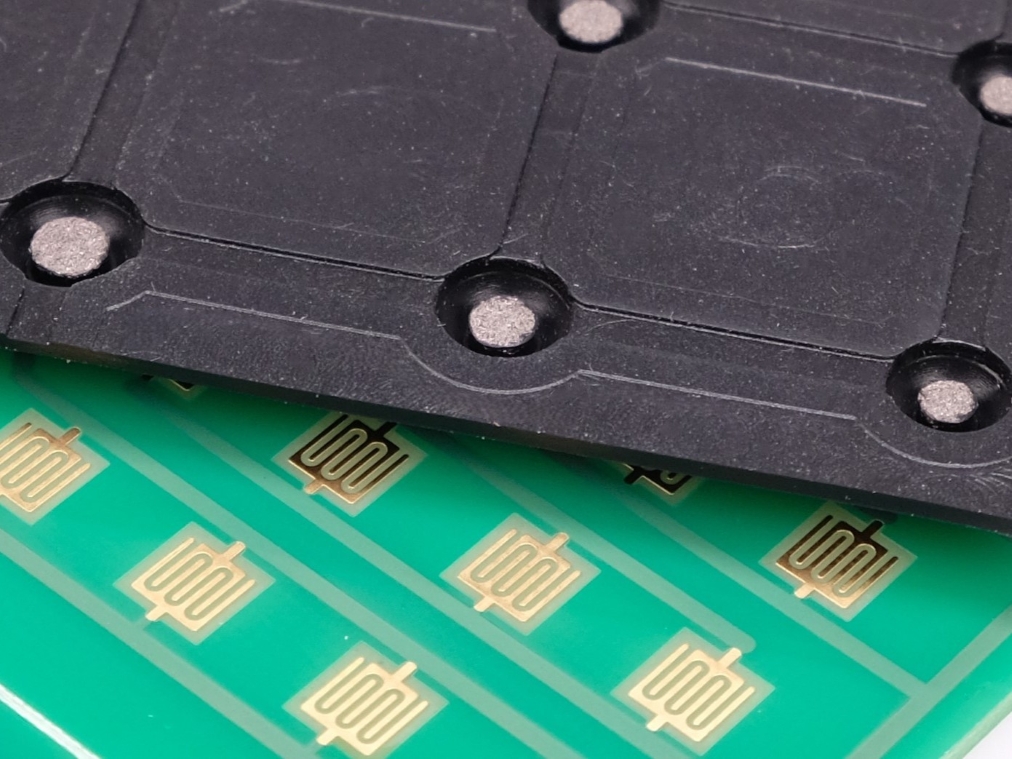

SC-M Pill
The perfect contact pill for rotational actuation.
SC-M is the ideal contact technology for silicone keypads in resistance coded or directly switched applications.
SC-M is technically way superior to any Gold- or Carbon contact and thus THE benchmark contact within the automotive industry.
Unique advantages are:
- Best solution for rotational actuation
- Low contact resistance
- Low contact force
- Reliable switching with a distinctive voltage drop when the pill hits the PCB
- Endures dust, grease and dirt exposure
- Robust in humid environments
For rotating actuations SC-M Pill is the preferred solution. This because the entire surface is super conductive resulting in a very low contact force.
|
|
Description
- Grey color = Conductive nickel-silicone
- Silver color = Conductive nickel mesh
- Co-molded with keypad
- Medium cost - less than a Gold pill
- Still performs in dusty environment
- Best for rotational & flat actuation
- ENIG PCB and stamped terminals
- Proprietary Abatek technology
|
Key Tech Data
- Resistance < 1.0 Ohm – pill with Ø >03.0 mm
- Resistance < 1.5 Ohm – pill with Ø 2.5 mm
- Contact force <0.3 N
- 14 V / 0.1 - 20 mA
|
Contact

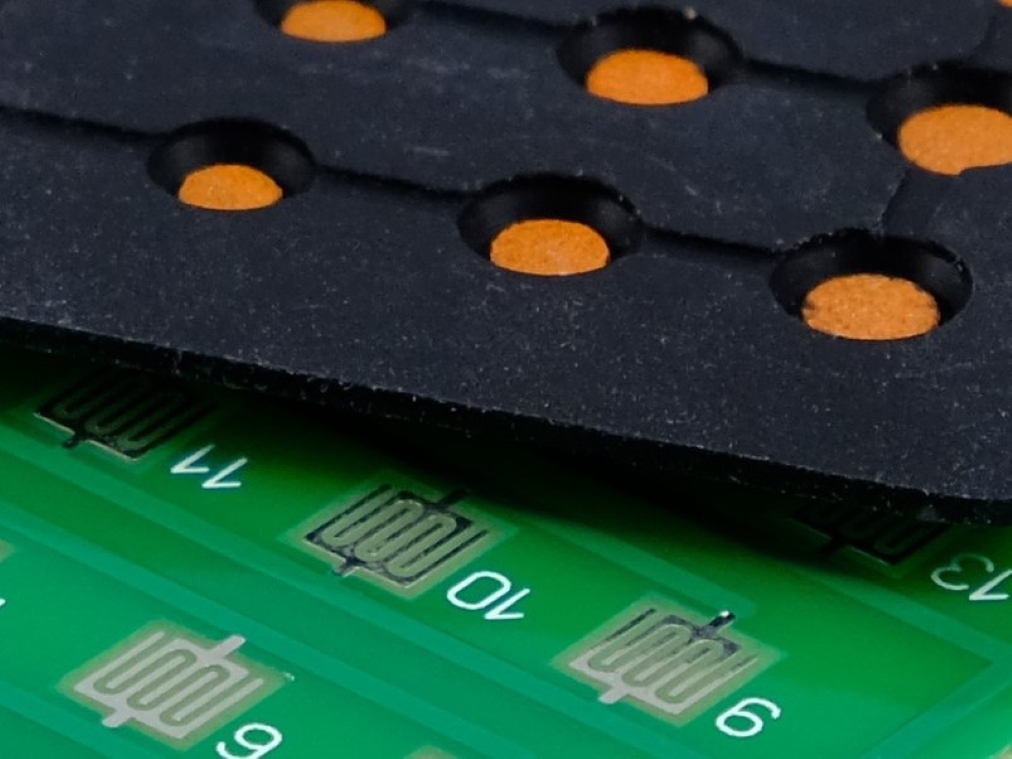

SC-H Pill
SC-H pill technology for switches without gold.
SC-H is the extension of the SC-line to enable gold free PCBs and gold free contacts. It enables significant cost savings without compromising technical performance.
SC-H is the ideal contact technology for silicone keypads in resistance coded or direct switched applications.
Unique advantages are:
- UNIQUE: Gold free PCB and keypad contacts
- PCB with conductive trace in special lead free HASL
- Low contact resistance
- Reliable switching with a distinctive voltage drop when the pill hits PCB
- Endures dust and dirt exposure
- Robust in humid environment
- Best for rotational & flat actuation
- Very cost-efficient
|
|
Description
- Most cost-efficient low resistance system
- Non gold contact system
- Orange color = Non-conductive silicone
- Silver color = Conductive nickel mesh
- Co-molded with keypad
- Still performs in dusty environment
- Flat actuation
- Proprietary Abatek technology
|
Key Tech Data
- Resistance < 1.0 Ohm – pill with Ø>= 3.0 mm
- Resistance < 1.5 Ohm – pill with Ø 2.5 mm
- Contact force <0.5 N
- 14 V / 0.1 – 600 mA
|
Contact

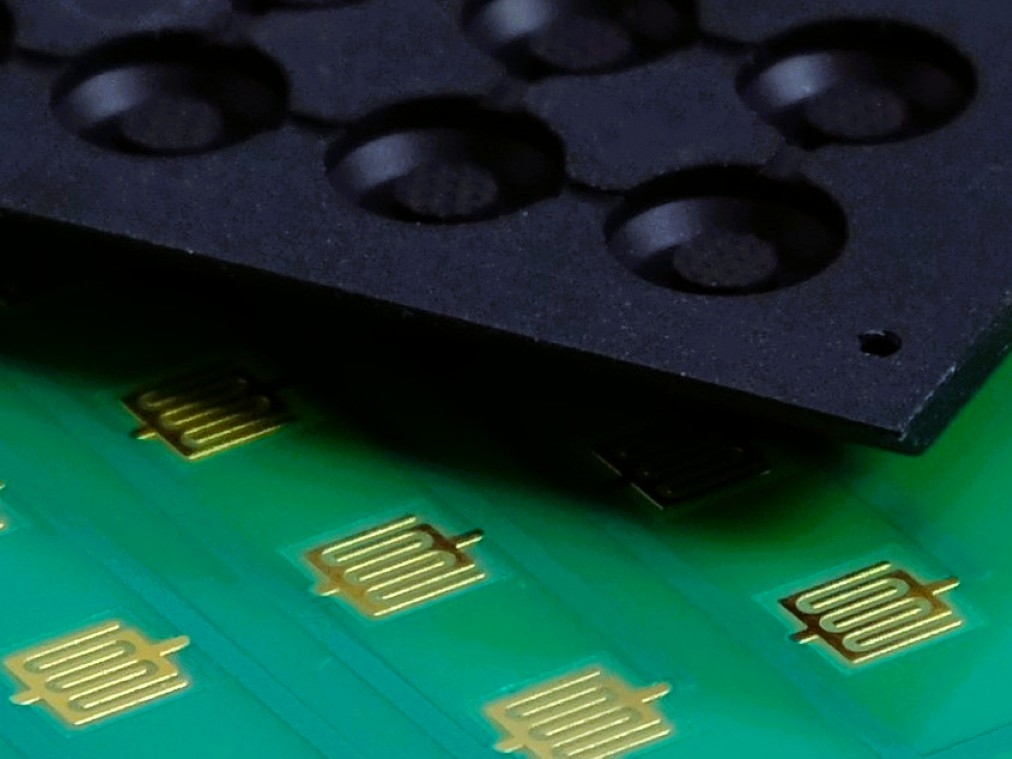

Carbon Pill / Ink
The ideal contact material to create pills in all shapes and sizes.
The common contact technology for silicone keypads in all shapes and sizes. Carbon pills are typically used for high resistance applications.
Carbon ink is mainly used for complex shapes e.g.rings for central backlighting.
|
Contact technology Carbon pill
|
Description
- Silicone based carbon pill / ink
- Pills are co-molded with keypad while ink is printed on the keypad
- Contact resistance depends on contact force
- For flat actuation only
- Sensitive to humidity
|
Key Tech Data
- Resistance < 100 Ohm – pill with Ø>= 3.0 mm
- Resistance < 150 Ohm – pill with Ø 2.5 mm
- Resistance < 200 Ohm – ink
- High contact force < 1.5 N
- 14 V / 0.1 – 20 mA
- Flat actuation
|
Contact

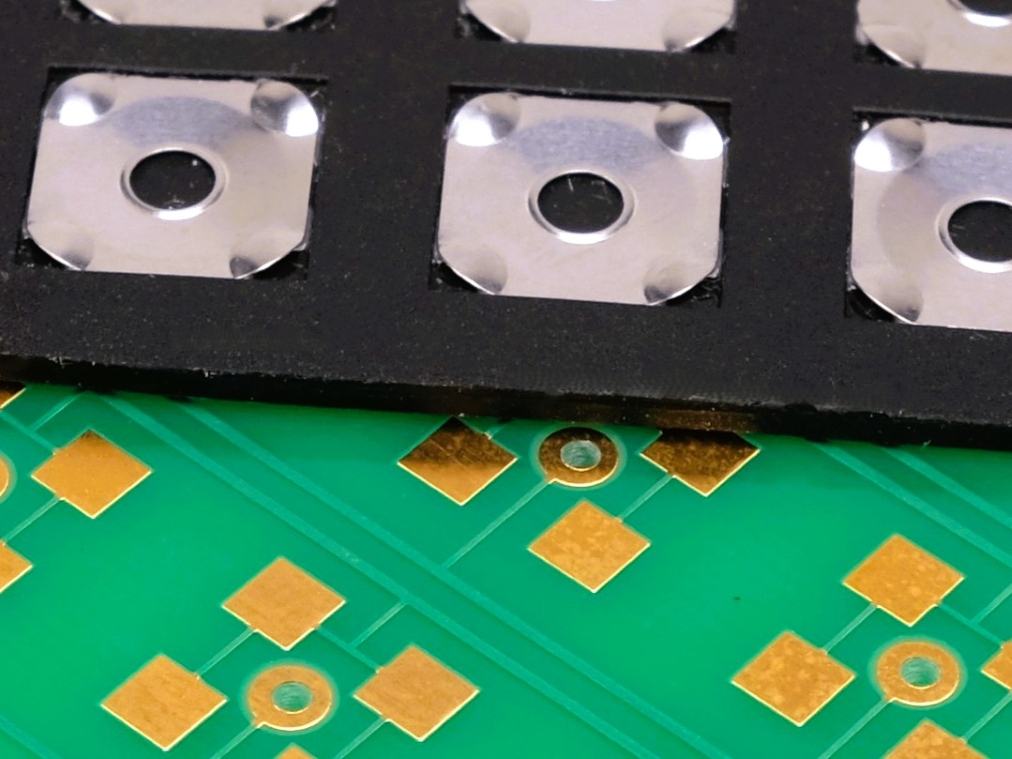

ClickPad
Unique short stroke feel and sound generated through a combination of technologies.
The world’s most robust and versatile short stroke solution enhances and replaces traditional micro switches.
Smart combination of specially selected metal domes with a value adding silicone base.
The ClickPad system performes beyond expectations regarding all relevant dimensions, e.g. feel characteristic, pre-load, acoustic control, lighting, sealing, redundancy and rotational actuation.
|
Contact Technologie ClickPad
|
Description
- Customized tactile feel
- Adjustable acoustic
- Value adding keypad base designed for sealing, lighting, redundancy, capacitive or double functions and more.
- Plastic caps are firm due to high pre-load
- Metal domes with a hole for central backlight
- High forces with small footprint
- Simple & reliable
- Stroke can be defined
- Sound can be customized
- Preload can be defined
- Standard actuating force 2.5N to 9N, (others upon request)
- Complete Nickel-plated dome range
- From square to round dome
- Backlighting metal domes through the center
- Low resistance
- High durability proven up to 850k cycles
- Fully automated assembly
- Capacitive solutions
- Design responsibility
- Cost efficient
|
Key Tech Data
- < 1.0 Ohm to < 5 Ohm depending on metal dome plating.
- Actuating force range from 2.5 N to 9N (others upon request)
- Snap ratio from 5 - 55 %
- Short to long stroke range 0.4 mm – 1-3 mm
|
Contact

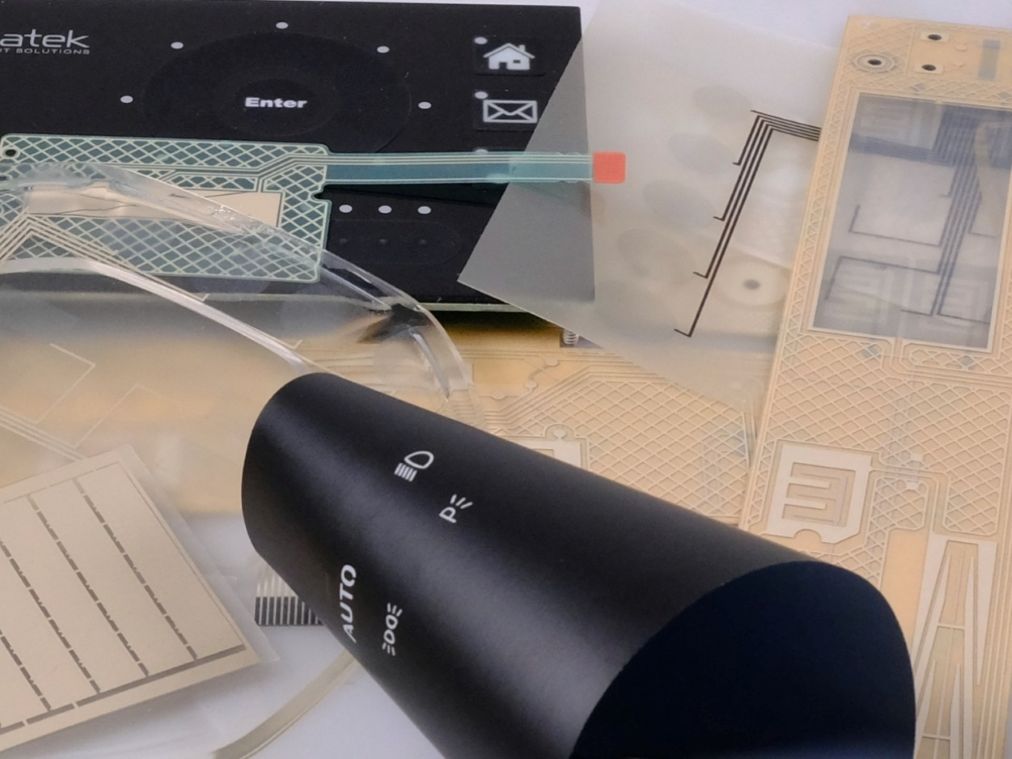

Capacitive
Guide the electromagnetic field.
Abatek provides solutions for guiding electromagnetic fields from the surface to the PCB. Furthermore conductive foils detecting the capacitive interaction right below the surface are offered.
Bridging the airgap by guiding the electromagnetic field down from the A-surface to the PCB board via customized silicone is a very cost efficient and robust solution.
The capacitive function can be combined with tactile feel and illumination.
|
Contact technology capactive
|
Description
- Customized solution
- Bridges the airgap regarding of high tech products
- Pratically no limits of form and shape
- SMT assembly of certain shapes possible - see Spacer-Damper
- Customizable resistance
- Custom printed foils
|
